Description

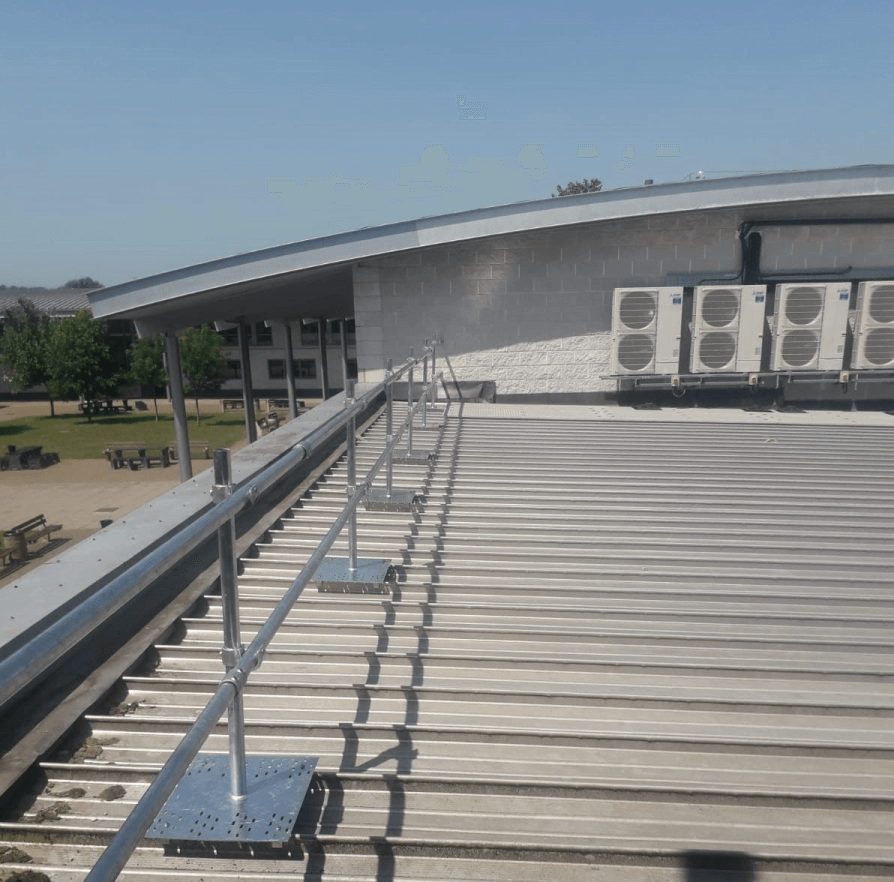

1200mm tall upright post for use as fixed roof edge guardrail. 48.3mm diameter upright tube, 3.2mm wall thickness. Hot-dip galvanised finish for a minimum of 20 years of service life.
Baseplate design allows easy install onto numerous clad roof profiles with a profile peak spacing range of 250mm to 500mm.
The recommended fixing method is to use 7.7 rivets, minimum of 8 used per base plate.
Order J clamps to accept horizontal rails, A68-8 post caps/plugs and other required key clamp separately. For use with your choice of Lockinex key clamp fittings (size 8 to suit 48.3mm diameter).
Visit here for your free Fixed System brochure download which contains all product details.
